360
Sensors

1TS1328

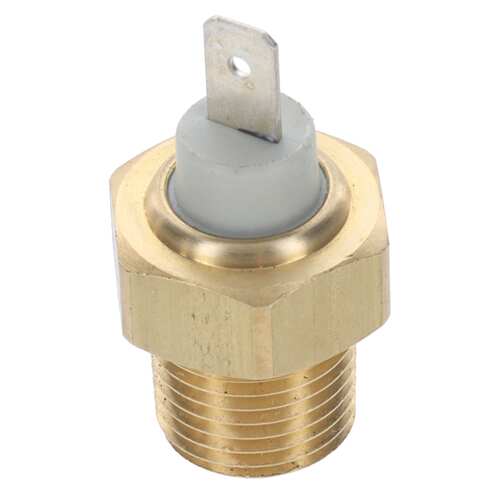

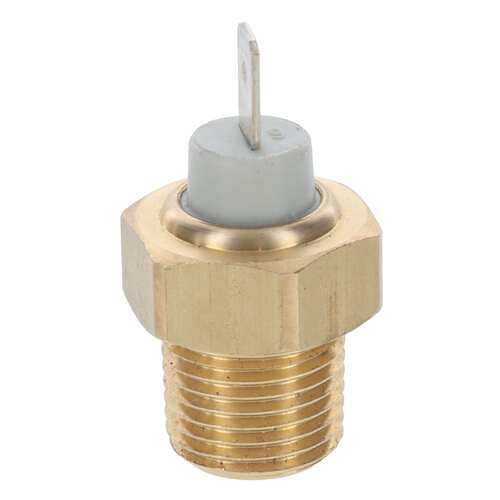

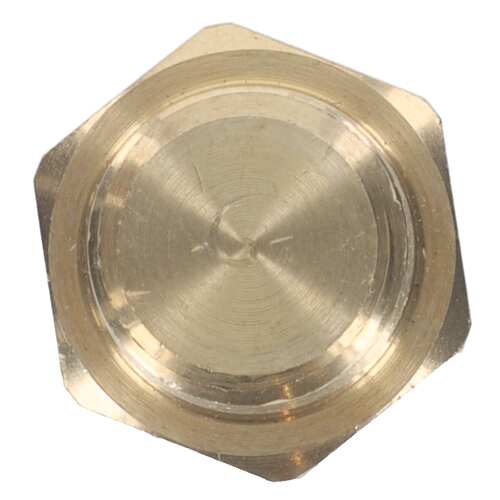

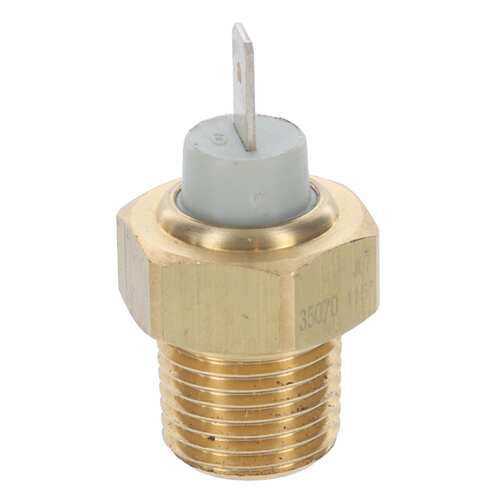

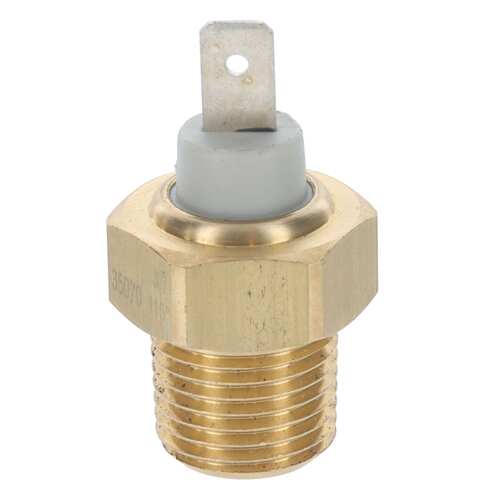

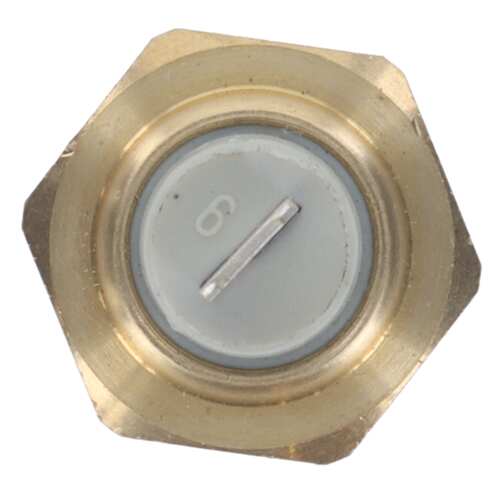

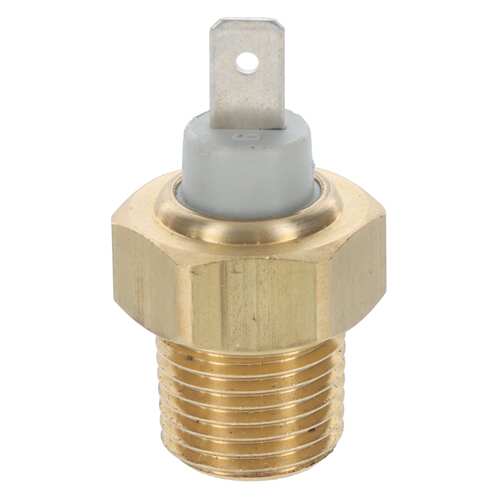

Engine Coolant Temperature Sender

Approved materials for increased durability in even the most extreme temperatures. All MotoRad Coolant Temperature Sensors are designed to meet or exceed OEM specifications at our ISO TS16949 manufacturing facilities.

Features:

  • 100% factory resistance calibrated to ensure precision tolerances, resulting in extremely accurate temperature for optimal performance
  • Thread Sealant and/or O-ring pre-installed on applicable sensors to ensure leak free performance
  • Brass sensor housing precision machined to meet or exceed OE thermal conductivity
  • OE precision matched thermistor position for correct output parameters
  • Extensive product testing includes salt spray, high/low temperature impact, thermal vibration, durability, static electricity, and micro tension, among other tests, to ensure all sensors meet or exceed OEM specifications.
  • Height: 1.58 in
  • Mounting Bracket Length: N/A
  • Mounting Bracket Thickness: N/A
  • Mounting Bracket Width: N/A
  • Prop 65: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Seal Outside Diameter: N/A
  • Color: Gray
  • Connector Height: 15.49 mm
  • Connector Length: 11.18 mm
  • Connector Quantity: 0
  • Connector Width: 6.35 mm
  • Gasket Or Seal Included: No
  • Head Tool Size: 21.08 mm
  • Length: 40.39 mm
  • Material: Plastic
  • Mounting Bracket Included: No
  • Mounting Hardware Included: No
  • Mounting Type: Threaded
  • Seal Quantity: 0
  • Sensor Casing Length: 14.22 mm
  • Sensor Casing Maximum Diameter: 16.76 mm
  • Sensor Casing Minimum Diameter: 16.76 mm
  • Terminal Gender: Male
  • Terminal Quantity: 1
  • Terminal Type: Spade
  • Thread Sealer Included: No
  • Thread Size: 0.06 in
Year Make Model Engine
Loading...
  • Advance WTA4076
  • Fiat 4334613
  • MotoRad 1TS1328
  • OReilly 1TS1328
  • SMP (Standard Motor Products) TS572
