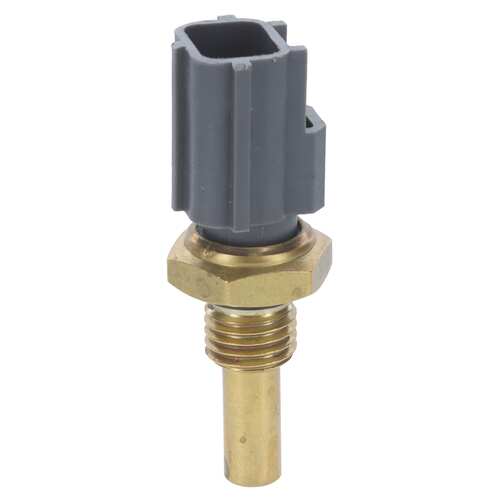

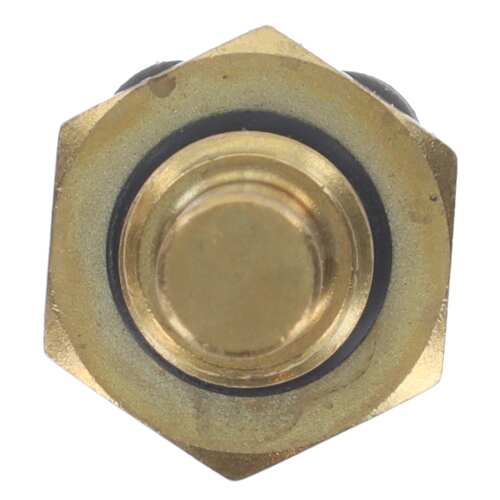

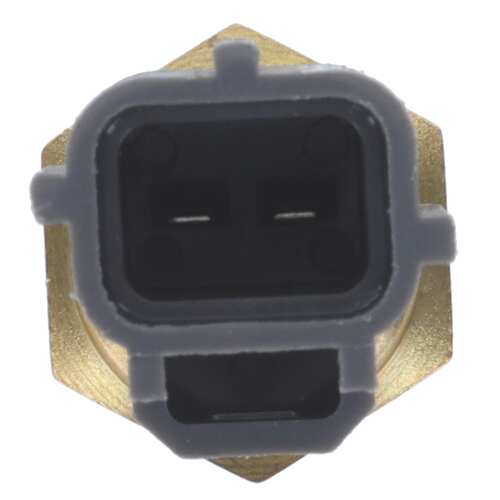

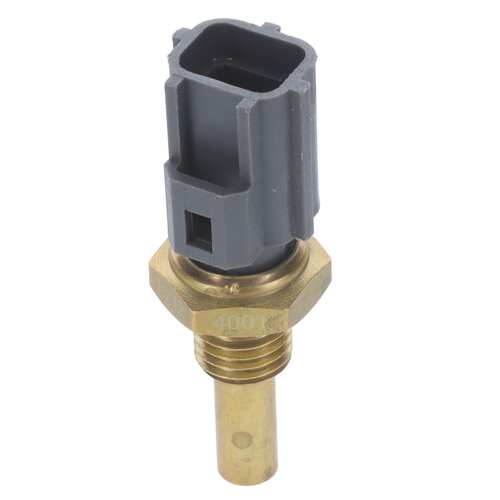

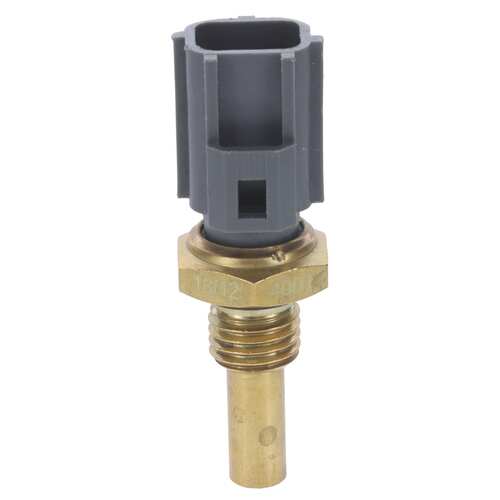

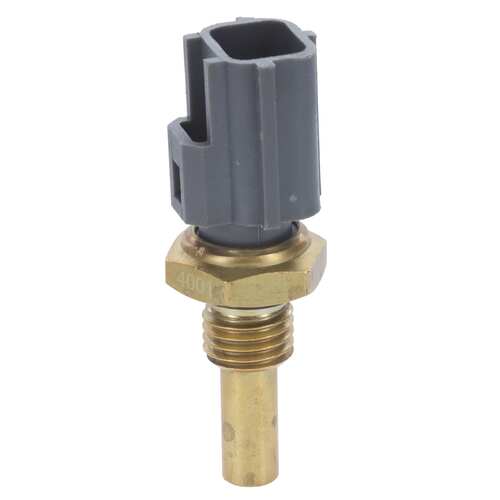

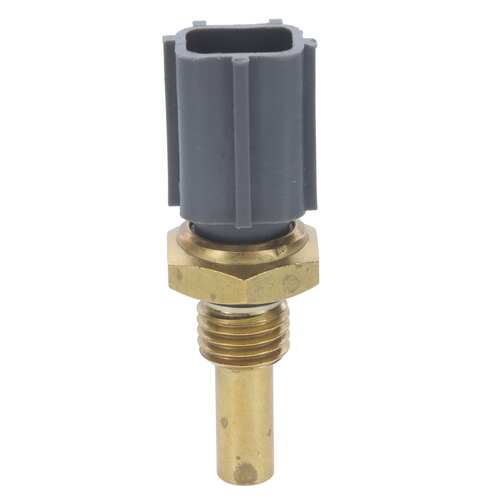

1TS1527
Fuel Temperature Sensor with Thread Sealant and Washer

Features:

• 100% factory resistance calibrated to ensure precision tolerances, resulting in extremely accurate temperature for optimal performance
• Thread Sealant and/or O-ring pre-installed on applicable sensors to ensure leak free performance
• Brass sensor housing precision machined to meet or exceed OE thermal conductivity
• OE precision matched thermistor position for correct output parameters
• Extensive product testing includes salt spray, high/low temperature impact, thermal vibration, durability, static electricity, and micro tension, among other tests, to ensure all sensors meet or exceed OEM specifications.

• Height: 2.37 in
• Prop 65: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

• Connector Color: Gray
• Connector Gender: Female
• Connector Height: 24.89 mm
• Connector Length: 18.54 mm
• Connector Quantity: 1
• Connector Shape: Rectangular
• Connector Width: 15.75 mm
• Gasket Or Seal Included: Yes
• Head Tool Size: 19.05 mm
• Seal Outside Diameter: 13.21 mm
• Seal Type: O-Ring
• Sensor Casing Height: 28.19 mm
• Sensor Casing Maximum Diameter: 9.91 mm
• Sensor Casing Minimum Diameter: 7.62 mm
• Terminal Gender: Male
• Terminal Quantity: 2
• Terminal Type: Spade
• Thread Sealer Included: No
• Thread Size: 1.52 mm
• Thread Type: Medium
• Threaded End Diameter: 0.46 in
