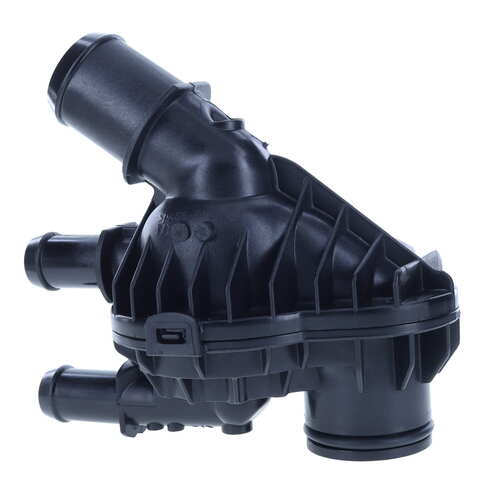

Thermostat - Thermostat w/ Housing
1259-180
Housing Thermostat
Available to Order
Manufactured with OEM quality materials and safety standards by an OE Supplier. Stands up to even the most demanding automotive cooling systems. Manufactured with OEM specifications and processes. Copper case and wax compound assures rapid response to temperature changes in the coolant.
Features:
- High grade stainless steel and copper construction
- Meets or exceeds OEM standards
- Consistent and precise response to cooling system needs
- Original equipment design for worry-free direct fit replacement
- 100% tested and calibrated
Specifications:
- Flange Length: Internal Component
- Flange Thickness: Internal Component
- Flange Width: Internal Component
- Gasket Or Seal Material: Rubber
- Gasket or Seal Pre-Installed: Yes
- Gasket Quantity: 0
- Jiggle Pin Included: Yes
- Prop 65: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Seal Quantity: 1
- Gasket Type: O-Ring
- Bleeder Hole: Yes
- Outlet Port Outside Diameter: 0.81 in
- Outlet Port Outside Diameter: 0.81 in
- Outlet Port Outside Diameter: 1.44 in
- Outlet Port Outside Diameter: 20.57 mm
- Outlet Port Outside Diameter: 20.57 mm
- Outlet Port Outside Diameter: 36.58 mm
- Inlet Quantity: 0
- Actuator Type: Mechanical
- Includes Sensor: No
- Grade Type: Standard Replacement
- Valve Type: Disk
- Inside Diameter: 0.54 in
- Inside Diameter: 0.54 in
- Inside Diameter: 1.13 in
- Inside Diameter: 13.72 mm
- Inside Diameter: 13.72 mm
- Inside Diameter: 28.70 mm
- Material: Plastic
- Color: Black
- Mounting Hole Quantity: 1
- Gasket Or Seal Required: Yes
- Terminal Quantity: 0
- Mounting Hardware Included: No
- Gasket Or Seal Included: Yes
- Start to Open Temperature: 180 Deg. F
- Start to Open Temperature: 82.22 Deg. C
- Bolt Hole Center To Bolt Hole Center: 0.00 mm
- Bolt Hole Center To Bolt Hole Center: 0.00 in
- Outlet Port Quantity: 3
Interchanges:
- Advance 1259-180
- Autozone 12598
- Autozone 12598BP
- Canadian Tire - MotoRad 1259-180
- Cartek - CH, IHT, TA 1259-180
- Cartek 1259-180
- Ford GN1Z8592A
- Ford GN1Z8592B
- MotoRad 1259-180
- NAPA 180-9521
- NAPA 180-9521
- NAPA 180-9521
- OReilly 12598
Applications:
