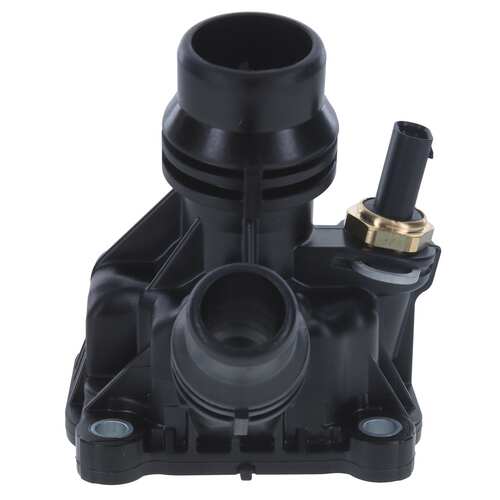

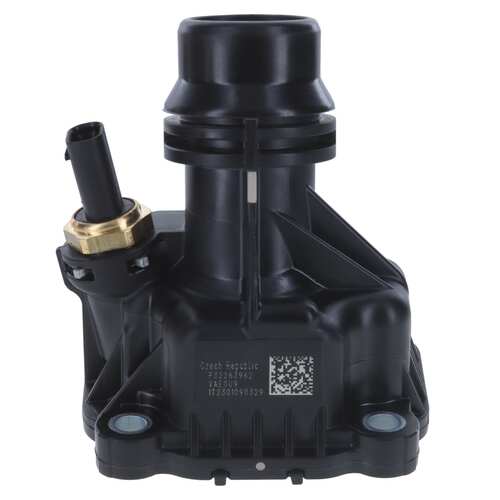

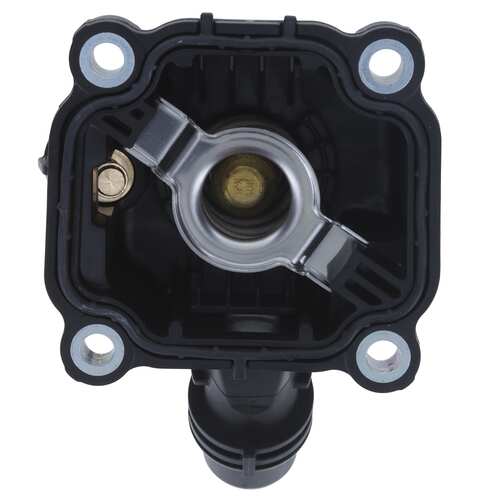

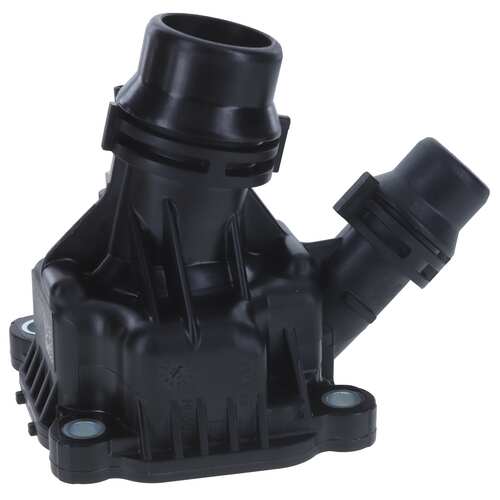

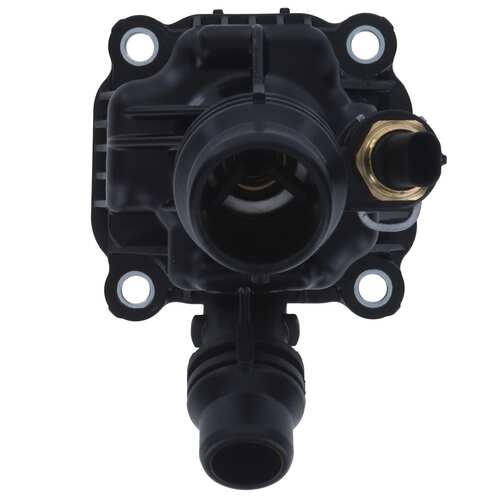

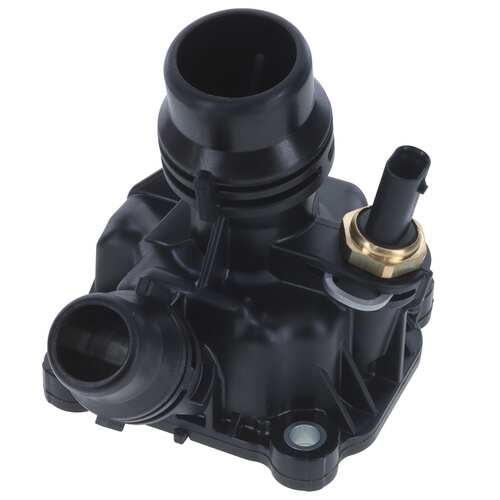

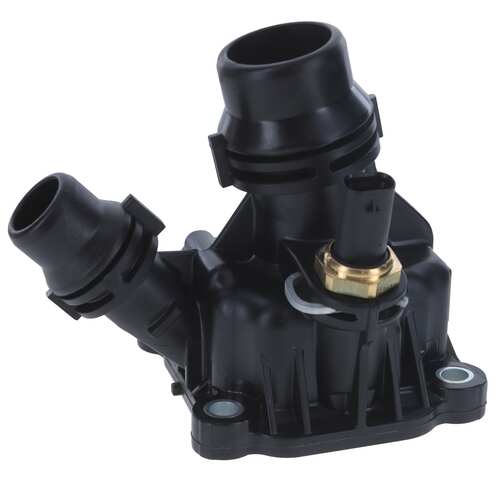

Thermostat - Thermostat w/ Housing
1407-195
Housing Thermostat
Available to Order
Manufactured with OEM quality materials and safety standards by an OE Supplier. Stands up to even the most demanding automotive cooling systems. Manufactured with OEM specifications and processes. Copper case and wax compound assures rapid response to temperature changes in the coolant.
Features:
- High grade stainless steel and copper construction
- Meets or exceeds OEM standards
- Consistent and precise response to cooling system needs
- Original equipment design for worry-free direct fit replacement
- 100% tested and calibrated
Specifications:
- Prop 65: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Actuator Type: Mechanical
- Mounting Hole Diameter: 0.27 in
- Mounting Hole Diameter: 6.86 mm
- Start to Open Temperature: 195.0 Deg. F
- Start to Open Temperature: 90.56 Deg. C
- Bleeder Hole: No
- Gasket Type: Gasket O-Ring
- Inlet Inside Diameter: 2.58 in
- Inlet Inside Diameter: 2.35 in
- Inlet Inside Diameter: 65.53 mm
- Inlet Inside Diameter: 59.69 mm
- Inlet Quantity: 1
- Bypass Inside Diameter: 0.63 in
- Bypass Inside Diameter: 16.00 mm
- Flange Length: 3.28 in
- Flange Length: 83.31 mm
- Bypass Outside Diameter: 1.13 in
- Bypass Outside Diameter: 28.70 mm
- Outlet Port Outside Diameter: 1.56 in
- Outlet Port Outside Diameter: 39.62 mm
- Flange Thickness: 0.41 in
- Flange Thickness: 10.41 mm
- Flange Width: 3.10 in
- Flange Width: 78.74 mm
- Terminal Quantity: 2
- Grade Type: Standard Replacement
- Gasket Or Seal Required: Yes
- Mounting Hole Quantity: 4
- Outlet Port Quantity: 1
- Terminal Type: Blade
- Bolt Hole Center To Bolt Hole Center: 2.36 in
- Bolt Hole Center To Bolt Hole Center: 2.42 in
- Bolt Hole Center To Bolt Hole Center: 2.24 in
- Bolt Hole Center To Bolt Hole Center: 2.42 in
- Bolt Hole Center To Bolt Hole Center: 59.94 mm
- Bolt Hole Center To Bolt Hole Center: 61.47 mm
- Bolt Hole Center To Bolt Hole Center: 56.90 mm
- Bolt Hole Center To Bolt Hole Center: 61.47 mm
- Outlet Port Length: 1.24 in
- Outlet Port Length: 31.50 mm
- Mounting Hardware Included: No
- Gasket Or Seal Included: Yes
- Outlet Port Inside Diameter: 1.03 in
- Outlet Port Inside Diameter: 26.16 mm
- Inlet Outside Diameter: 3.04 in
- Inlet Outside Diameter: 2.72 in
- Inlet Outside Diameter: 77.22 mm
- Inlet Outside Diameter: 69.09 mm
- Connector Shape: Rectangular
- MAP Controlled: No
- Valve Type: Disk
- Inside Diameter: 2.58 in
- Inside Diameter: 2.35 in
- Inside Diameter: 65.53 mm
- Inside Diameter: 59.69 mm
- Material: Brass, Copper, Plastic, Rubber, Steel
- Includes Sensor: Yes
- Color: Black
- Outlet Hose Connection Type: Quick Coupler
- Inlet Hose Connection Type: Bolt On
- Bypass Quantity: 1
- Bypass Length: 1.71 in
- Bypass Length: 43.43 mm
- Bypass Hose Connection Type: Quick Coupler
Interchanges:
- Advance 1407-195
- Autozone 14079
- Autozone 14079BP
- Cartek - CH, IHT, TA 1407-195
- Cartek 1407-195
- MotoRad 1407-195
- NAPA 195-7041
- NAPA 195-7041
- NAPA 195-7041
- OReilly 14079
- Volvo 32263962
