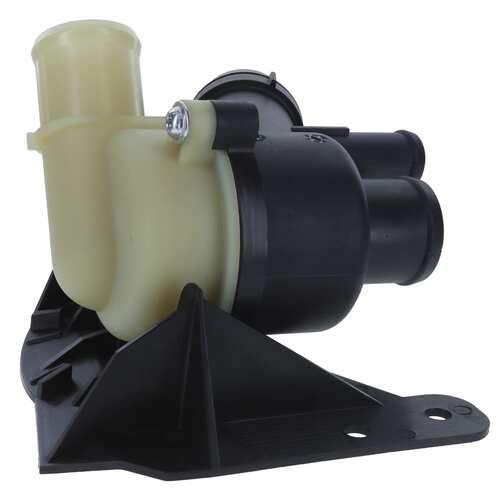

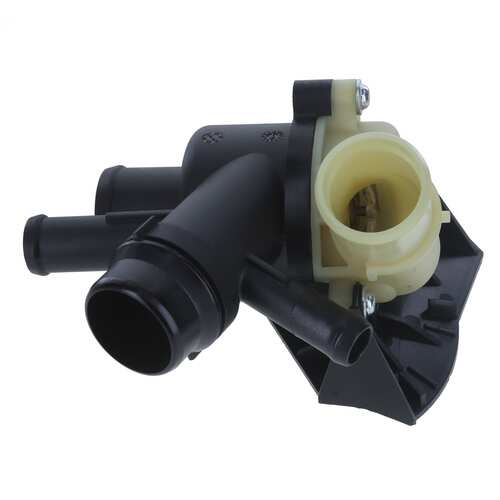

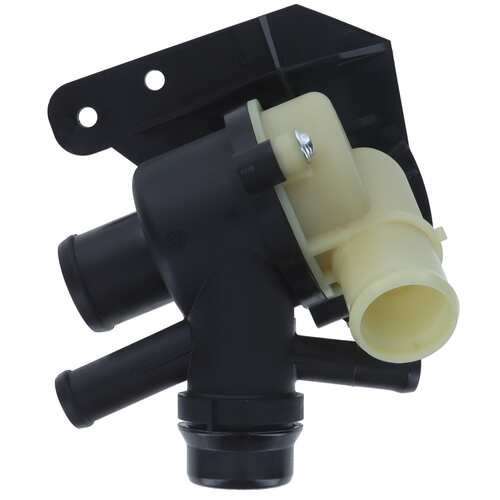

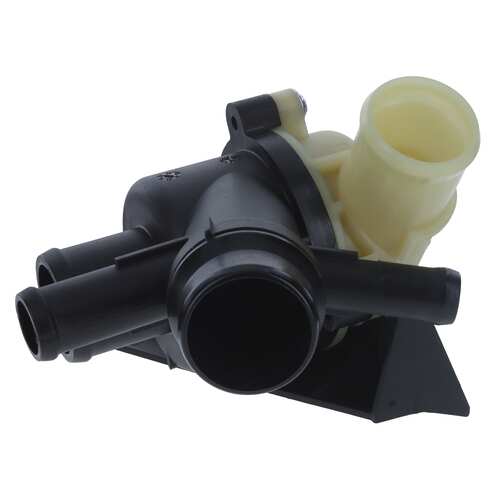

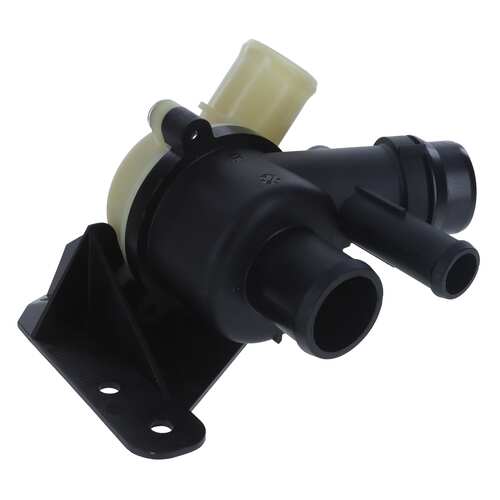

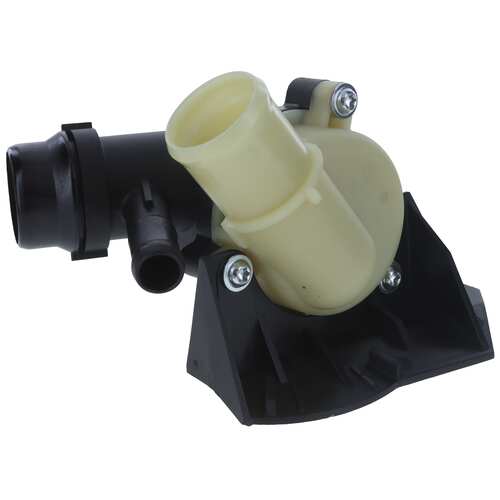

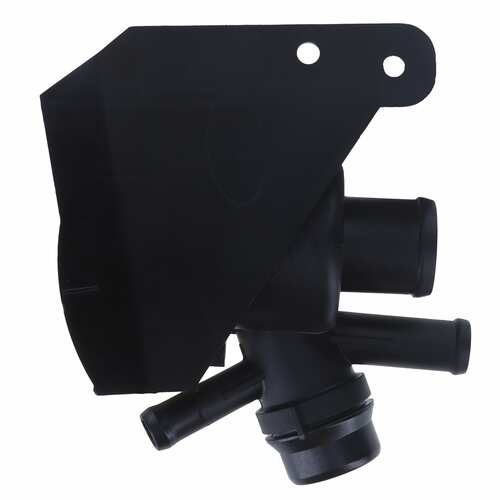

Thermostat - Thermostat with Housing
1413-180
Housing Thermostat
Available to Order
Manufactured with OEM quality materials and safety standards by an OE Supplier. Stands up to even the most demanding automotive cooling systems. Manufactured with OEM specifications and processes. Copper case and wax compound assures rapid response to temperature changes in the coolant.
Features:
- High grade stainless steel and copper construction
- Meets or exceeds OEM standards
- Consistent and precise response to cooling system needs
- Original equipment design for worry-free direct fit replacement
- 100% tested and calibrated
Specifications:
- Connector Shape: N/A
- Prop 65: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Bypass Inside Diameter: 0.65 in
- Bypass Inside Diameter: 0.50 in
- Bypass Inside Diameter: 16.51 mm
- Bypass Inside Diameter: 12.70 mm
- Bypass Outside Diameter: 0.88 in
- Bypass Outside Diameter: 0.69 in
- Bypass Outside Diameter: 22.35 mm
- Bypass Outside Diameter: 17.53 mm
- Outlet Port Quantity: 2
- Actuator Type: Mechanical
- Flange Thickness: 0.12 in
- Flange Thickness: 3.05 mm
- Flange Width: 5.02 in
- Flange Width: 127.51 mm
- Inlet Quantity: 1
- Outlet Port Length: 1.38 in
- Outlet Port Length: 1.30 in
- Outlet Port Length: 35.05 mm
- Outlet Port Length: 33.02 mm
- Inlet Inside Diameter: 1.31 in
- Inlet Inside Diameter: 33.27 mm
- Flange Length: 5.49 in
- Flange Length: 139.45 mm
- Bleeder Hole: No
- Outlet Port Outside Diameter: 1.52 in
- Outlet Port Outside Diameter: 1.48 in
- Outlet Port Outside Diameter: 38.61 mm
- Outlet Port Outside Diameter: 37.59 mm
- Mounting Hole Diameter: 0.31 in
- Mounting Hole Diameter: 7.87 mm
- Start to Open Temperature: 180.0 Deg. F
- Start to Open Temperature: 82.22 Deg. C
- Mounting Hardware Included: No
- Terminal Quantity: 0
- Gasket Or Seal Included: No
- MAP Controlled: No
- Inlet Outside Diameter: 1.78 in
- Inlet Outside Diameter: 45.21 mm
- Grade Type: Standard Replacement
- Bolt Hole Center To Bolt Hole Center: 1.20 in
- Bolt Hole Center To Bolt Hole Center: 30.48 mm
- Mounting Hole Quantity: 2
- Includes Sensor: No
- Gasket Or Seal Required: No
- Material: Copper, Plastic, Steel
- Inlet Hose Connection Type: Quick Coupler
- Outlet Port Inside Diameter: 1.19 in
- Outlet Port Inside Diameter: 1.24 in
- Outlet Port Inside Diameter: 30.23 mm
- Outlet Port Inside Diameter: 31.50 mm
- Outlet Hose Connection Type: Barbed
- Color: Black
- Bypass Quantity: 2
- Valve Type: Disk
- Bypass Length: 1.20 in
- Bypass Length: 30.48 mm
- Bypass Length: 29.97 mm
- Bypass Hose Connection Type: Barbed
- Bypass Length: 1.18 in
- Inside Diameter: 1.31 in
- Inside Diameter: 33.27 mm
Interchanges:
- Advance 1413-180
- Autozone 14138
- Autozone 14138BP
- Cartek - CH, IHT, TA 1413-180
- Cartek 1413-180
- Land Rover LR085946
- MotoRad 1413-180
- NAPA 180-3141
- NAPA 180-3141
- NAPA 180-3141
- OReilly 14138
