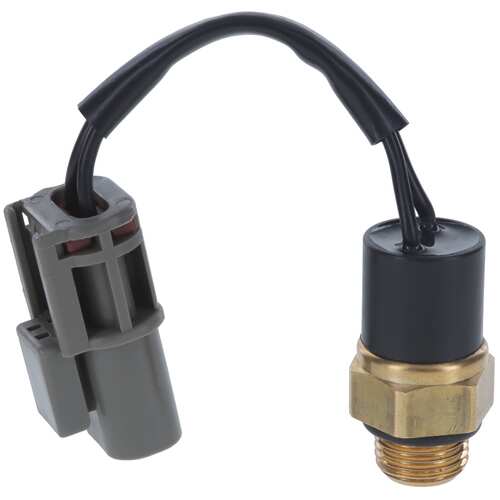

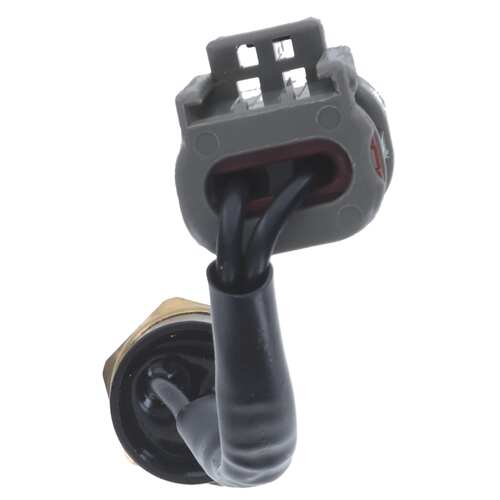

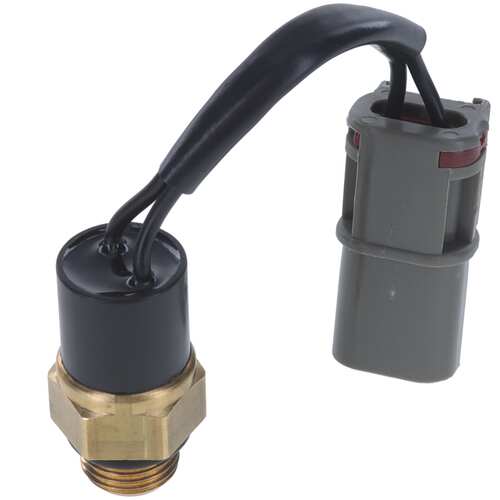

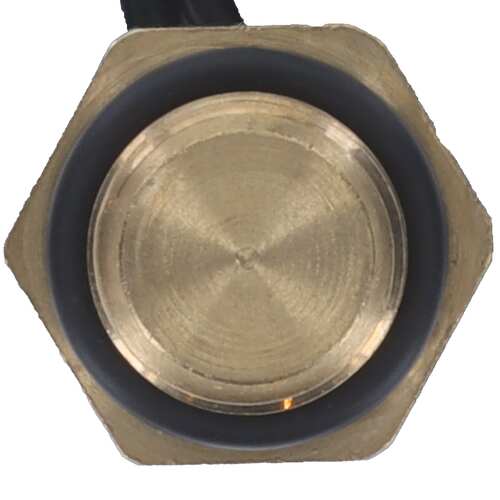

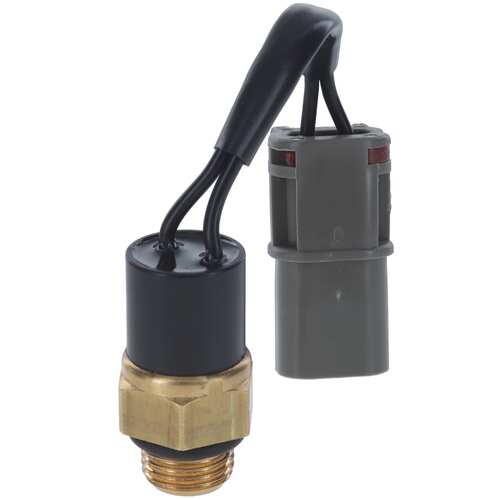

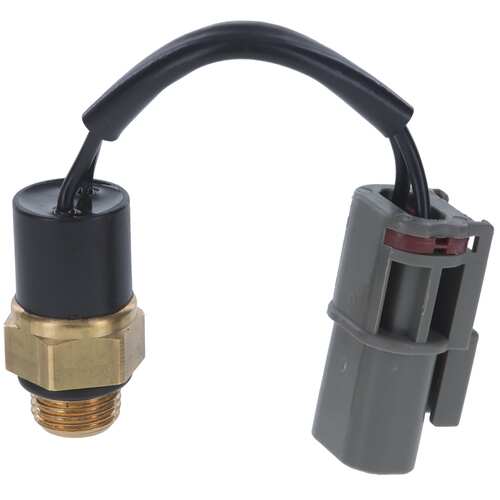

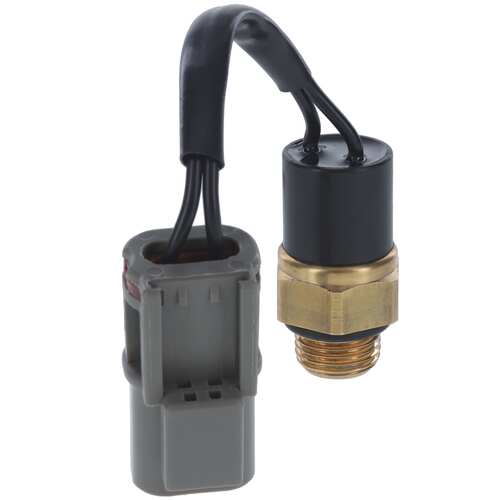

Sensors - Temp Sensor/Sender/Switch
1TS1452
Cooling Fan Switch
Available to Order
Approved materials for increased durability in even the most extreme temperatures. All MotoRad Sensors are designed to meet or exceed OEM specifications at our ISO TS16949 manufacturing facilities.
Features:
- 100% factory resistance calibrated to ensure precision tolerances, resulting in extremely accurate temperature for optimal performance
- Thread Sealant and/or O-ring pre-installed on applicable sensors to ensure leak free performance
- Brass sensor housing precision machined to meet or exceed OE thermal conductivity
- OE precision matched thermistor position for correct output parameters
- Extensive product testing includes salt spray, high/low temperature impact, thermal vibration, durability, static electricity, and micro tension, among other tests, to ensure all sensors meet or exceed OEM specifications.
Specifications:
- Height: 7.13 IN
- Prop 65: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Thread Diameter: 0.62 IN
- Connector Quantity: 1
- Head Tool Size: 0.87 in
- Head Tool Size: 22.10 mm
- Connector Length: 0.83 in
- Connector Length: 21.08 mm
- Mounting Bracket Included: No
- Connector Gender: Female
- Thread Size: 1/4" - 20
- Seal Outside Diameter: 0.79 in
- Seal Outside Diameter: 20.07 mm
- Mounting Type: Threaded
- Thread Sealer Included: No
- Thread Type: Medium
- Connector Shape: Rectangular
- Gasket Or Seal Included: Yes
- Seal Type: O-Ring
- Terminal Quantity: 2
- Cooling Fan Quantity: 0
- Wire Quantity: 2
- Bolt Hole Quantity: 0
- Wiring Harness Included: No
- Terminal Gender: Male
- Material: Rubber
- Material: Brass
- Material: Plastic
- Sensor Casing Length: 0.45 in
- Sensor Casing Length: 11.43 mm
- Sensor Casing Maximum Diameter: 0.63 in
- Sensor Casing Maximum Diameter: 16.00 mm
- Connector Height: 1.75 in
- Sensor Casing Minimum Diameter: 0.57 in
- Sensor Casing Minimum Diameter: 14.48 mm
- Connector Height: 44.45 mm
- Terminal Type: Blade
- Wiring Harness Length: 3.70 in
- Wiring Harness Length: 93.98 mm
- Connector Width: 0.54 in
- Connector Width: 13.72 mm
- Connector Color: Gray
Interchanges:
- Advance WTB2381
- Chevrolet 19021016
- MotoRad 1TS1452
- Nissan 2159563A00
- Nissan 2159563A01
- OReilly 1TS1452
- SMP (Standard Motor Products) TS189
