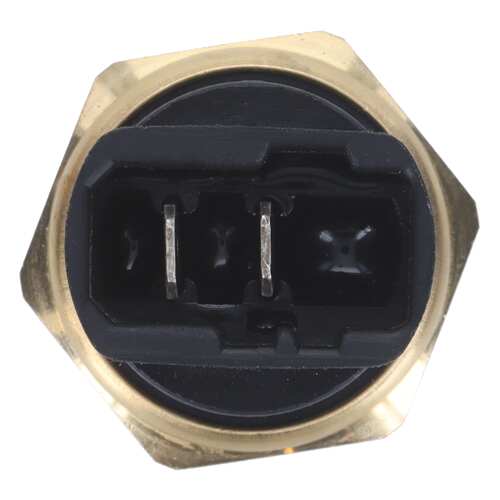

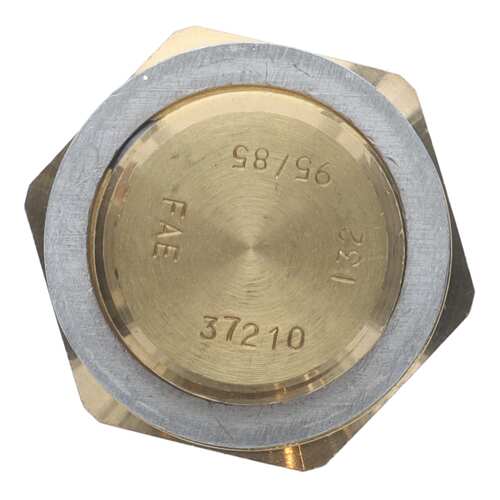

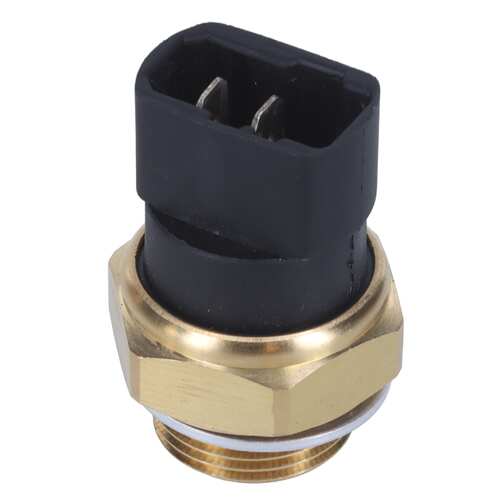

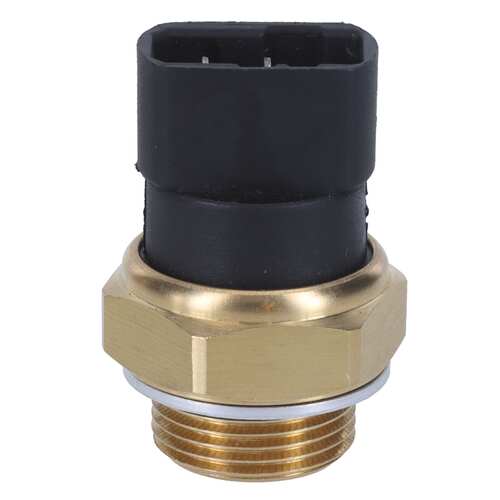

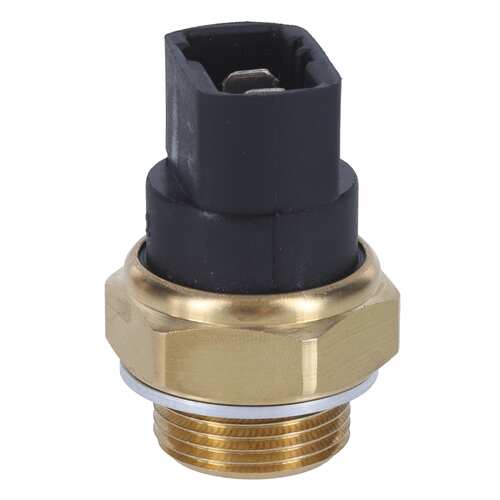

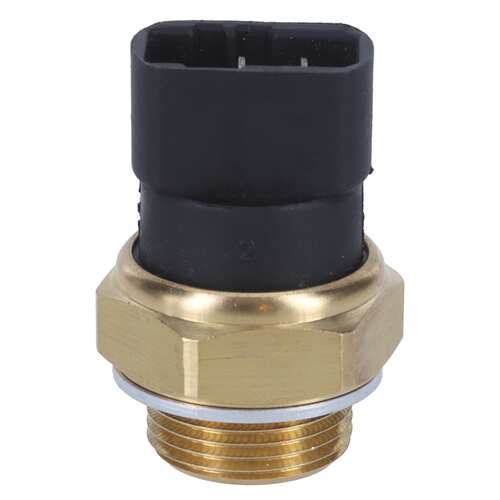

Sensors - Temp Sensor/Sender/Switch
1TS1540
Cooling Fan Switch
Available to Order
Approved materials for increased durability in even the most extreme temperatures. All MotoRad Sensors are designed to meet or exceed OEM specifications at our ISO TS16949 manufacturing facilities.
Features:
- 100% factory resistance calibrated to ensure precision tolerances, resulting in extremely accurate temperature for optimal performance
- Thread Sealant and/or O-ring pre-installed on applicable sensors to ensure leak free performance
- Brass sensor housing precision machined to meet or exceed OE thermal conductivity
- OE precision matched thermistor position for correct output parameters
- Extensive product testing includes salt spray, high/low temperature impact, thermal vibration, durability, static electricity, and micro tension, among other tests, to ensure all sensors meet or exceed OEM specifications.
Specifications:
- Height: 1.78 IN
- Mounting Bracket Length: N/A
- Mounting Bracket Thickness: N/A
- Mounting Bracket Width: N/A
- Prop 65: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Thread Diameter: 0.86 IN
- Terminal Type: Blade
- Head Tool Size: 1.14 in
- Head Tool Size: 28.96 mm
- Mounting Type: Threaded
- Thread Type: Coarse
- Connector Gender: Female
- Connector Quantity: 1
- Terminal Quantity: 2
- Sensor Casing Maximum Diameter: 0.78 in
- Sensor Casing Maximum Diameter: 19.81 mm
- Sensor Casing Length: 10.67 mm
- Sensor Casing Length: 0.42 in
- Connector Color: Black
- Sensor Casing Minimum Diameter: 0.78 in
- Sensor Casing Minimum Diameter: 19.81 mm
- Connector Width: 0.64 in
- Connector Width: 16.26 mm
- Connector Height: 0.87 in
- Connector Height: 22.10 mm
- Material: Brass
- Material: Plastic
- Material: Steel
- Wire Quantity: 0
- Connector Shape: Rectangular
- Gasket Or Seal Included: Yes
- Bolt Hole Quantity: 0
- Connector Length: 0.98 in
- Connector Length: 24.89 mm
- Thread Size: 1/4" - 20 in
- Mounting Bracket Included: No
- Thread Sealer Included: No
- Seal Outside Diameter: 1.12 in
- Seal Outside Diameter: 28.45 mm
- Seal Type: Flat Washer
- Wiring Harness Included: No
- Terminal Gender: Male
- Cooling Fan Quantity: 0
Interchanges:
- Advance WTA4039
- MotoRad 1TS1540
- OReilly 1TS1540
- SMP (Standard Motor Products) TS173
- Volkswagen 191959481
- Volkswagen 191959481B
Applications:
