Ignition - Ignition Coils
3IC184

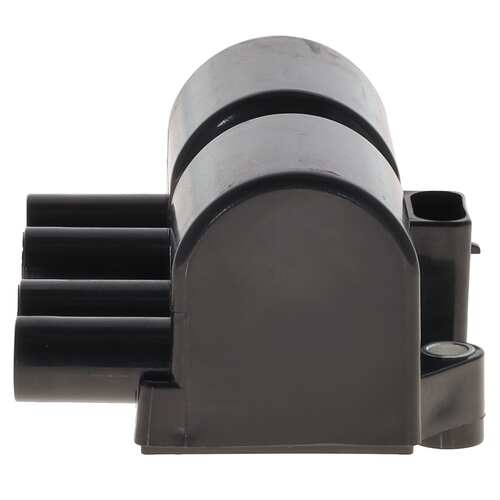

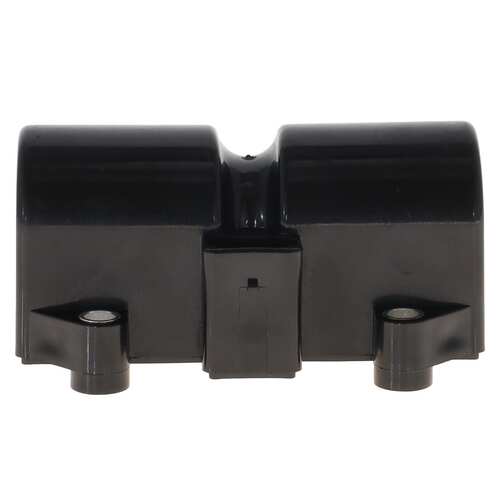

Ignition Coil
MotoRad Ignition Coils are engineered to maximize spark voltage duration to ensure optimal engine performance. Designed to perform under severe operating conditions and protects against extreme heat. All MotoRad Ignition Coils are designed to meet or exceed OEM specifications at our ISO TS16949 manufacturing facilities. Plus, all our engine management products are backed with confidence of a limited lifetime warranty.
Features:
- Primary and secondary windings made with ETP grade copper to provide superior temperature protection and voltage conductivity.
- Graphite-infused platinum connections resist corrosion and offer superior conductivity and durability.
- Heat resistant magnet produces max voltage output at all engine speeds.
- Preapplied dielectric grease for easy installation.
Specifications:
- Primary Resistance: 400-1000 Ohms
- Prop 65: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Secondary Resistance: 2900-9100 Ohms
- Terminal Type: Blade
- Terminal Quantity: 3
- Mounting Hole Quantity: 3
- Mounting Hardware Included: No
- Terminal Gender: Male
- Mounting Bracket Included: No
- Connector Gender: Female
- Grade Type: Standard Replacement
- Voltage: 12 VDC
- Connector Quantity: 1
- Requires External Resistor: Yes
- Oil Filled: No
- Universal Or Specific Fit: Specific
- Color: Black
- Connector Shape: Rectangular
Interchanges:
- ACDelco D519C
- Airtex Engine Management 5C1479
- Airtex Engine Management 5C1585
- Autozone 3IC184
- Autozone 3IC184
- Autozone C1480
- Beck/Arnley 1788341
- BWD E1003
- CARQUEST (Wells) 521840
- CARQUEST (Wells) EBE1059
- Daewoo 93363483
- Daewoo 96253555
- Daewoo 96566260
- Delphi Engine Management GN10230
- Dorman 521800
- Forecast 50094
- Forecast UF503F
- General Motors 1104039
- General Motors 19005265
- General Motors 25182496
- General Motors 96253555
- General Motors 96566260
- HOLSTEIN 2IGC0344
- MotoRad - EM 3IC184
- NAPA IC583
- NGK (NTK) 48932
- NGK (NTK) U2031
- Opel 4805507
- OReilly 230101
- OReilly 23-0101
- OReilly 3IC184
- Original Engine Management 50094
- Original Engine Management UF503F
- SMP (Standard Motor Products) UF503
- SMP (Standard Motor Products) UF503T
- Spectra Premium (SPI) C692
- Suzuki 3341084Z00
- Suzuki 3341084Z01
- Valucraft C1480VC
- WAI CUF503
- Wells C1480
- Wells C1542
