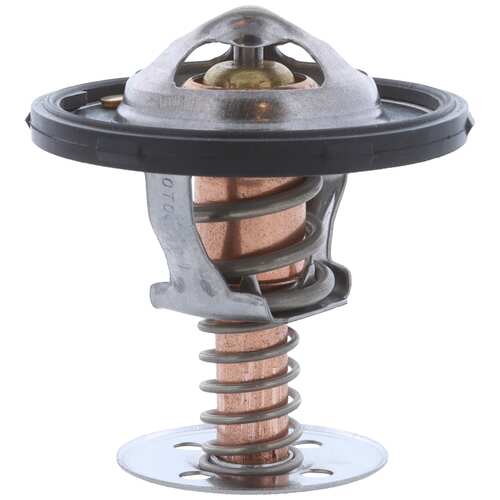

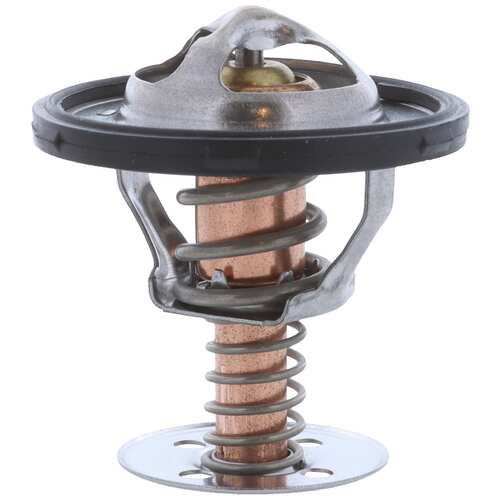

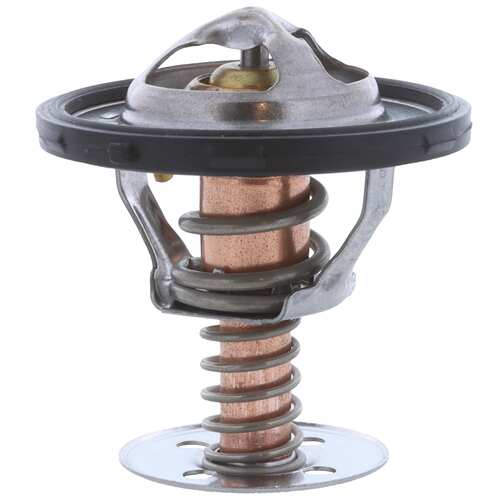

Thermostat - Standard Naked Thermostat
456-187
Thermostat
Manufactured with OEM quality materials and safety standards by an OE Supplier. Stands up to even the most demanding automotive cooling systems. Manufactured with OEM specifications and processes. Copper case and wax compound assures rapid response to temperature changes in the coolant. Offset design, air relief valve, and OEM style seals included where applicable
Features:
- High grade stainless steel and copper construction
- Meets or exceeds OEM standards
- Consistent and precise response to cooling system needs
- Original equipment design for worry-free direct fit replacement
- 100% tested and calibrated
Specifications:
- Outlet Inside Diameter: 1.21 IN
- Outlet Outside Diameter: 1.43 IN
- Prop 65: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Valve Outside Diameter: 1.35 IN
- Gasket Or Seal Included: Yes
- Gasket Quantity: 0
- Seal Type: O-Ring
- Grade Type: OEM
- Height: 2.56 in
- Height: 65.02 mm
- Jiggle Pin Weep Hole: Yes
- Material: Steel
- Material: Copper
- Color: Silver
- Color: Brass
- Gasket or Seal Pre-Installed: Yes
- Height Between Flanges: 1.79 in
- Height Between Flanges: 45.47 mm
- MAP Controlled: No
- Sealing Flange Outside Diameter: 2.13 in
- Sealing Flange Outside Diameter: 54.10 mm
- Gasket Or Seal Required: Yes
- Flange Thickness: 1.27 mm
- Seal Quantity: 1
- Flange Thickness: 0.05 in
- Seal Material: Rubber
- Type: Standard
- Depth: 1.73 in
- Depth: 43.94 mm
- Bolt Hole Quantity: 0
- Start to Open Temperature: 187.0 Deg. F
- Start to Open Temperature: 86.11 Deg. C
- Gasket Or Seal Material: Rubber
- Installation Tool Included: No
- Bypass Flange Diameter: 1.46 in
- Bypass Flange Diameter: 37.08 mm
- Engine Coolant Thermostat Quantity: 1
- Electric: No
- Includes Jiggle Pin Check Valve: Yes
- Bypass Flange Length: 1.84 in
- Bypass Flange Length: 46.73 mm
- Design: Standard
- Flange Height: 0.24 in
- Flange Height: 6.10 mm
- Jiggle Pin Check Valve Quantity: 1
Interchanges:
- ACDelco 131-143
- ACDelco 131-156
- Advance 14948
- AETM 14948
- Autozone 45687
- Autozone 45687BP
- Autozone 52487BP
- Canadian Tire - MotoRad 456-187
- Cartek 456-187
- Gates (Private) 33963
- General Motors 12568911
- General Motors 12570358
- General Motors 12581594
- General Motors 12581595
- General Motors 12600171
- Mighty 45687
- Mighty 52487
- MotoRad 456-187
- NAPA 506-186
- NAPA 506-186
- NAPA 506-186
- Omni 456-187
- OmniCraft QRT53
- OReilly 45687
- Pep Boys 456-187
- Pep Boys 524-190
- Stant 14948
- Vernet TH2105.86J
Applications:
