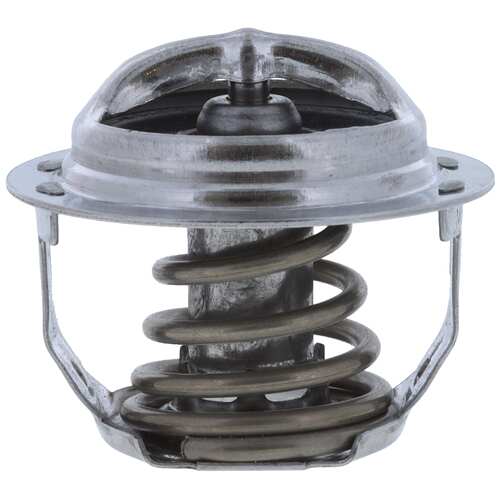

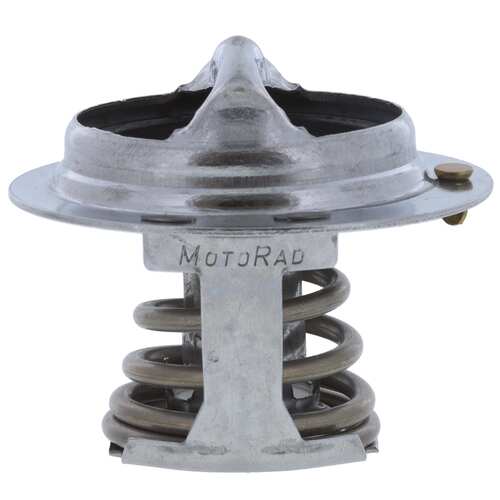

Thermostat - UltraStat
5294-170
UltraStat
Available to Order
UltraStat™ Thermostats are the toughest thermostats on the market. All heavy gauge stainless steel construction provides long-life durability, as well as complete corrosion resitance. Exclusive BLVT™ Valve technology minimizes thermal shock to cooling system components.
Features:
- Heavy gauge stainless steel components offer increased reliability and long-lasting durability
- Exclusive BLVT™ Valve Technology minimizes thermal shock to cooling system components
- Stainless steel thermal element for unmatched corrosion resistance and revolutionary REAX™ wax mixture provides quicker reaction time
- AccuSpring™ Design for stable temperature control and increased cabin comfort
Specifications:
- Prop 65: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Valve Outside Diameter: 0.81 IN
- Bypass Flange Diameter: 2.20 in
- Bypass Flange Diameter: 55.88 mm
- Includes Jiggle Pin Check Valve: Yes
- Seal Material: N/A
- Engine Coolant Thermostat Quantity: 1
- Seal Quantity: 0
- Sealing Flange Outside Diameter: 2.2 in
- Sealing Flange Outside Diameter: 55.88 mm
- Installation Tool Included: No
- Gasket Or Seal Included: No
- Gasket or Seal Pre-Installed: No
- MAP Controlled: No
- Design: OEM
- Grade Type: OEM
- Bypass Flange Length: 1.23 in
- Bypass Flange Length: 31.24 mm
- Jiggle Pin Check Valve Quantity: 1
- Flange Thickness: 0.05 in
- Flange Thickness: 1.27 mm
- Gasket Quantity: 0
- Flange Height: 0.05 in
- Flange Height: 1.27 mm
- Depth: 1.23 in
- Depth: 31.24 mm
- Color: Silver
- Height: 1.89 in
- Height: 48.01 mm
- Material: Stainless Steel
- Electric: No
- Start to Open Temperature: 170.0 Deg. F
- Start to Open Temperature: 76.67 Deg. C
- Height Between Flanges: 1.32 in
- Height Between Flanges: 33.53 mm
- Type: UltraStat
- Jiggle Pin Weep Hole: Yes
- Bolt Hole Quantity: 0
- Gasket Or Seal Required: Yes
Interchanges:
- Advance 5294-170
- AETM 46147
- Cartek 5294-170
- Gates (Private) 33857S
- MotoRad 5294-170
- NAPA PM170-4925
- NAPA PM170-4925
- NAPA PM170-4925
- OReilly MU55147
- Pep Boys 5294-170
- Stant 46147
- Stant 46457
Applications:
