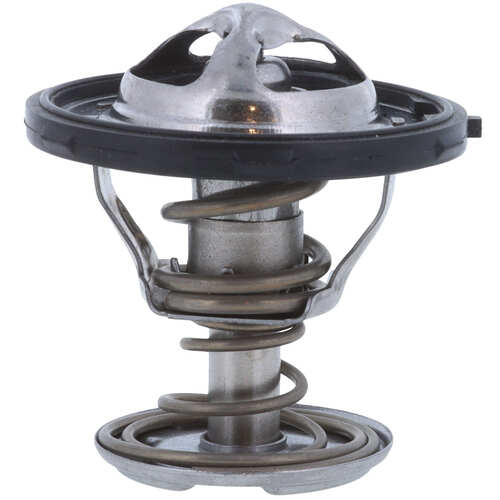

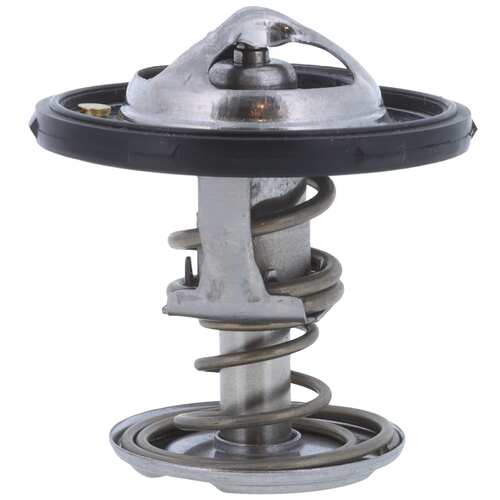

Thermostat - UltraStat
5456-187
UltraStat
Available to Order
UltraStat™ Thermostats are the toughest thermostats on the market. All heavy gauge stainless steel construction provides long-life durability, as well as complete corrosion resitance. Exclusive BLVT™ Valve technology minimizes thermal shock to cooling system components.
Features:
- Heavy gauge stainless steel components offer increased reliability and long-lasting durability
- Exclusive BLVT™ Valve Technology minimizes thermal shock to cooling system components
- Stainless steel thermal element for unmatched corrosion resistance and revolutionary REAX™ wax mixture provides quicker reaction time
- AccuSpring™ Design for stable temperature control and increased cabin comfort
Specifications:
- Outlet Inside Diameter: 1.21 IN
- Outlet Outside Diameter: 1.43 IN
- Prop 65: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Valve Outside Diameter: 1.35 IN
- Bypass Flange Diameter: 1.46 in
- Bypass Flange Diameter: 37.08 mm
- Includes Jiggle Pin Check Valve: Yes
- Design: Standard
- Bypass Flange Length: 1.84 in
- Bypass Flange Length: 46.73 mm
- Flange Height: 0.24 in
- Flange Height: 6.10 mm
- Engine Coolant Thermostat Quantity: 1
- Electric: No
- Seal Quantity: 1
- Jiggle Pin Check Valve Quantity: 1
- Seal Material: Rubber
- Start to Open Temperature: 187.0 Deg. F
- Start to Open Temperature: 86.11 Deg. C
- Depth: 1.73 in
- Depth: 43.94 mm
- Installation Tool Included: No
- Gasket Or Seal Material: Rubber
- Flange Thickness: 0.05 in
- Flange Thickness: 1.27 mm
- Material: Stainless Steel
- Sealing Flange Outside Diameter: 54.10 mm
- Sealing Flange Outside Diameter: 2.13 in
- Color: Silver
- MAP Controlled: No
- Gasket or Seal Pre-Installed: Yes
- Gasket Or Seal Required: Yes
- Height Between Flanges: 1.79 in
- Height Between Flanges: 45.47 mm
- Gasket Or Seal Included: Yes
- Jiggle Pin Weep Hole: Yes
- Grade Type: OEM
- Height: 2.56 in
- Height: 65.02 mm
- Gasket Quantity: 0
- Seal Type: O-Ring
- Bolt Hole Quantity: 0
- Type: UltraStat
Interchanges:
- Advance 5456-187
- Cartek 5456-187
- MotoRad 5456-187
- NAPA PM187-6545
- NAPA PM187-6545
- NAPA PM187-6545
- OReilly MU545687
- Pep Boys 5456-187
- Pep Boys 5524-190
