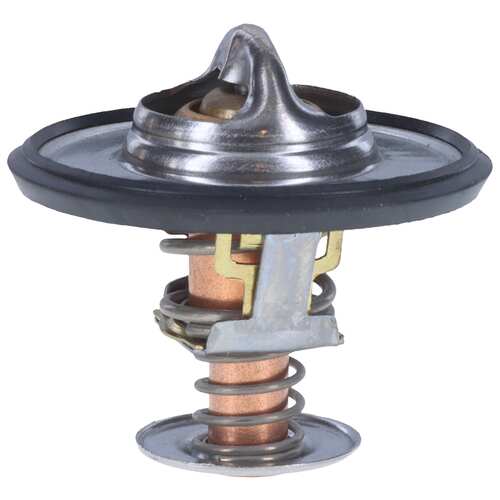

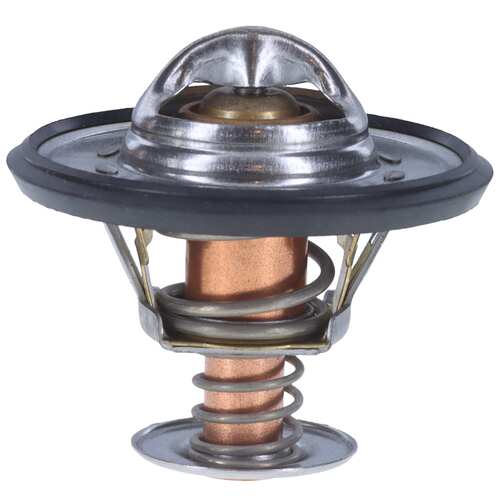

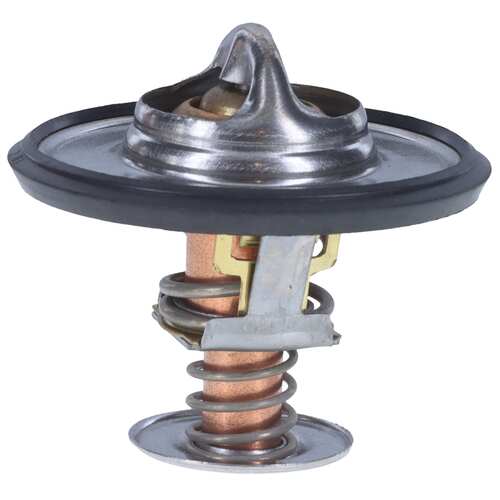

Thermostat - Standard Fail-Safe
7228-170
Fail-Safe Thermostat
Manufactured with OEM quality materials and safety standards by an OE Supplier. Stands up to even the most demanding automotive cooling systems. Manufactured with OEM specifications and processes. Copper case and wax compound assures rapid response to temperature changes in the coolant. Offset design, air relief valve, and OEM style seals included where applicable
Features:
- Exclusive, patented design
- Locking technology prevents costly engine damage
- 100% tested and calibrated
- Manufactured with the highest quality materials from an OE supplier.
- Meets or exceeds OEM standards
Specifications:
- Outlet Inside Diameter: 1.04 IN
- Outlet Outside Diameter: 1.23 IN
- Prop 65: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Valve Outside Diameter: 1.18 IN
- Gasket Or Seal Required: Yes
- MAP Controlled: No
- Gasket Or Seal Included: Yes
- Seal Type: O-Ring
- Height: 2.17 in
- Height: 55.12 mm
- Height Between Flanges: 1.52 in
- Height Between Flanges: 38.61 mm
- Jiggle Pin Weep Hole: No
- Grade Type: OEM
- Bolt Hole Quantity: 0
- Sealing Flange Outside Diameter: 2.12 in
- Sealing Flange Outside Diameter: 53.85 mm
- Gasket or Seal Pre-Installed: Yes
- Type: Fail-Safe
- Material: Steel
- Material: Copper
- Color: Gold
- Color: Silver
- Color: Brass
- Flange Height: 0.18 in
- Flange Height: 4.50 mm
- Includes Jiggle Pin Check Valve: No
- Engine Coolant Thermostat Quantity: 1
- Electric: No
- Design: Standard
- Bypass Flange Length: 0.55 in
- Bypass Flange Length: 14.00 mm
- Bypass Flange Diameter: 1.09 in
- Bypass Flange Diameter: 27.68 mm
- Jiggle Pin Check Valve Quantity: 0
- Seal Quantity: 1
- Depth: 1.39 in
- Depth: 35.31 mm
- Start to Open Temperature: 170.0 Deg. F
- Start to Open Temperature: 76.67 Deg. C
- Gasket Quantity: 0
- Flange Thickness: 0.06 in
- Flange Thickness: 1.52 mm
- Seal Material: Rubber
- Gasket Or Seal Material: Rubber
- Installation Tool Included: No
Interchanges:
- Autozone 7228-170
- Autozone 7228-170BP
- Cartek 7228-170
- MotoRad 7228-170
- NAPA SS170-8227
- NAPA SS170-8227
- NAPA SS170-8227
- OReilly 7228-170
- Pep Boys 7228-170
Applications:
