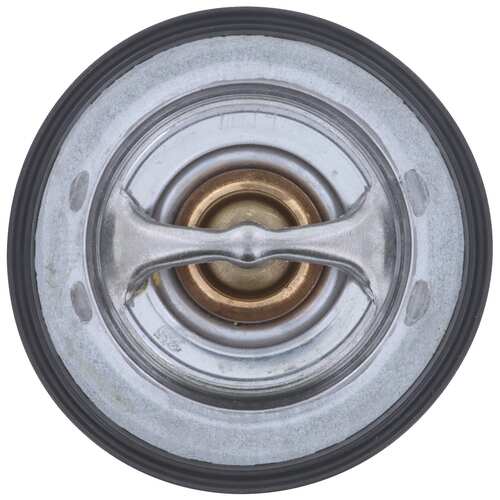

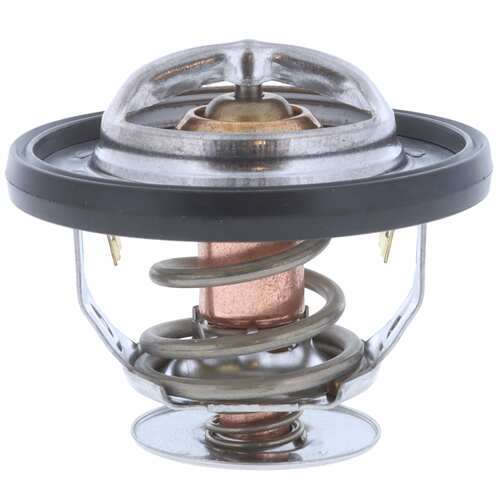

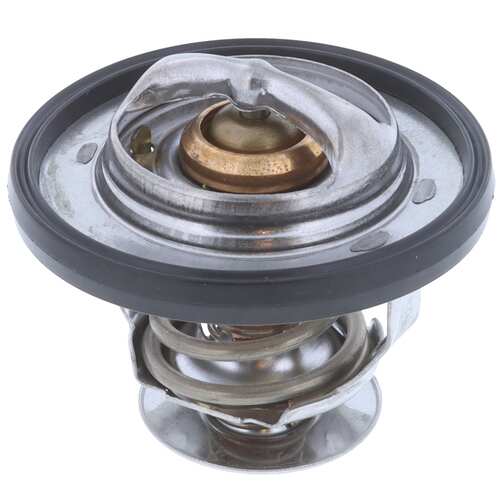

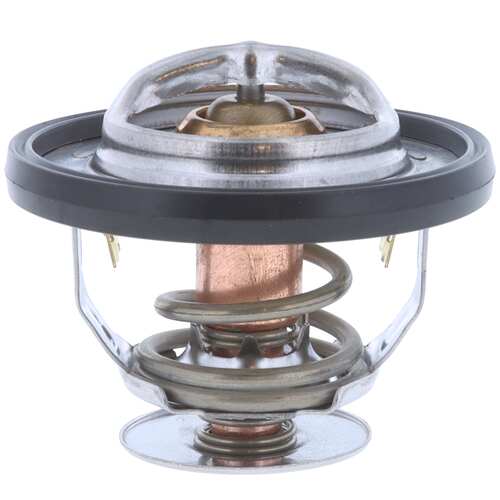

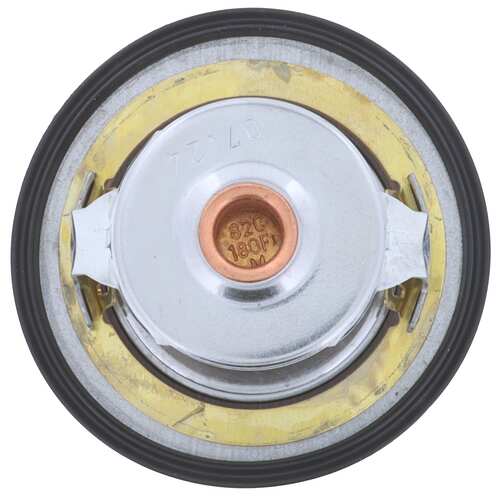

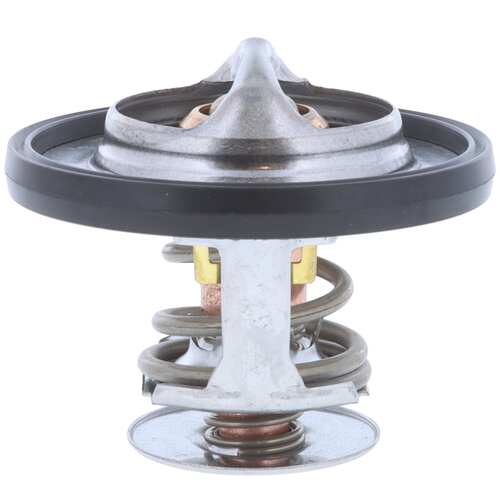

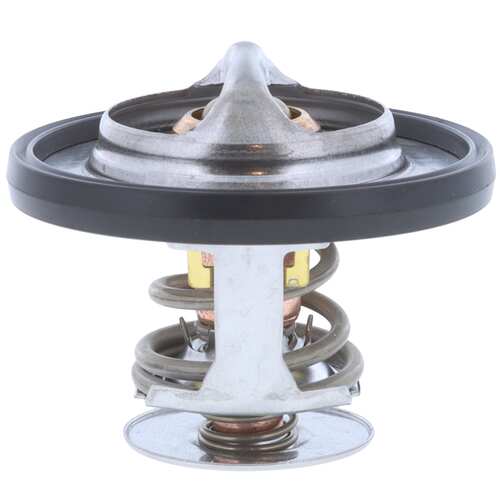

Thermostat - Standard Fail-Safe
7416-180
Fail-Safe Thermostat
Manufactured with OEM quality materials and safety standards by an OE Supplier. Stands up to even the most demanding automotive cooling systems. Manufactured with OEM specifications and processes. Copper case and wax compound assures rapid response to temperature changes in the coolant. Offset design, air relief valve, and OEM style seals included where applicable
Features:
- Exclusive, patented design
- Locking technology prevents costly engine damage
- 100% tested and calibrated
- Manufactured with the highest quality materials from an OE supplier.
- Meets or exceeds OEM standards
Specifications:
- Outlet Inside Diameter: 1.47 IN
- Outlet Outside Diameter: 1.72 IN
- Prop 65: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Valve Outside Diameter: 1.62 IN
- Seal Quantity: 1
- Bypass Flange Length: 38.61 mm
- Bypass Flange Length: 1.52 in
- Engine Coolant Thermostat Quantity: 1
- Electric: No
- Flange Thickness: 0.1 in
- Flange Thickness: 2.54 mm
- Seal Material: Rubber
- Start to Open Temperature: 82.22 Deg. C
- Depth: 1.49 in
- Depth: 37.85 mm
- Gasket Or Seal Material: Rubber
- Installation Tool Included: No
- Jiggle Pin Check Valve Quantity: 1
- Design: Standard
- Includes Jiggle Pin Check Valve: Yes
- Bypass Flange Diameter: 1.38 in
- Bypass Flange Diameter: 35.05 mm
- Flange Height: 0.31 in
- Flange Height: 7.87 mm
- Sealing Flange Outside Diameter: 2.5 in
- Sealing Flange Outside Diameter: 63.50 mm
- Material: Steel
- Material: Copper
- Gasket or Seal Pre-Installed: Yes
- Type: Fail-Safe
- Bolt Hole Quantity: 0
- Height: 2.3 in
- Height: 58.42 mm
- Grade Type: OEM
- Color: Silver
- Color: Brass
- Color: Gold
- Height Between Flanges: 1.4 in
- Height Between Flanges: 35.56 mm
- Gasket Or Seal Included: Yes
- Jiggle Pin Weep Hole: Yes
- Gasket Quantity: 0
- Start to Open Temperature: 180.0 Deg. F
- Gasket Or Seal Required: Yes
- MAP Controlled: No
- Seal Type: O-Ring
Interchanges:
- Autozone 7416-180
- Autozone 7416-180BP
- Cartek 7416-180
- MotoRad 7416-180
- NAPA 180-6147
- NAPA 180-6147
